Jarvis Wellsaw - Model 444
| ITEM | JARVIS PART NO. | PART NAME | QTY |
| 1 | 1055948 | Socket Head Cap Screw | 4 |
| 2 | 1024095 | Guard | 1 |
| 3 | 1055439 | Oval Head Screw | 7 |
| 4 | 1061188 | Tie Bar | 1 |
| 5 | 1002198 | Cover Plate | 1 |
| 6 | 1055454 | Round Head Screw | 2 |
| 1055438 | Set of 12 Screws | ||
| 7 | 1055434 | Button Head Screw | 1 |
| 8 | 1055431 | Oval Head Screw | 6 |
| 9 | 1002194 | Bearing Cap | 1 |
| 10 | 1035198 | Gasket | 1 |
| 11 | 1016200 | Gear Housing | 1 |
| 12 | 1063121 | Strain Relief | 1 |
| 13 | 1012048 | Clamp Bar | 1 |
| 14 | 1001028 | Power Cord Set, 115v 1 | 1 |
| 1001029 | Power Cord Set, 230v | 1 | |
| 15 | 1055430 | Fillister Head Screw | 2 |
| 16 | 1035194 | Seal | 1 |
| 17 | 1055436 | Set Screw | 3 |
| 18 | 1005038 | Switch | 1 |
| 19 | 1073190 | Round Head Screw | 2 |
| 20 | 1063124 | Insulator | 1 |
| 21 | 1002195 | Handle Cover | 1 |
| 22 | 1055452 | Flat Head Screw | 11 |
| 1055426 | Set of 12 Screws | 1 | |
| 23 | 1002196 | Bottom Plate | 1 |
| 24 | 1035196 | Bottom Plate Gasket | 1 |
| 25 | 1035195 | Seal | 2 |
| 26 | 1036118 | Bushing | 1 |
| 27 | 1023121 | Blade 16”, End Cutting | 1 |
| 28 | 1023124 | Blade 16” 4 tpi, Heavy Duty | 1 |
| 29 | 1058072 | Blade Support 16” Heavy Duty | 1 |
| 31 | 1023122 | Blade 8”, End Cutting | 1 |
| 32 | 1023123 | Blade 8” 4 tpi, Heavy Duty | 1 |
| 34 | 1058073 | Blade Support 8” Heavy Duty | 1 |
| 35 | 1024060 | Blade Guard | 1 |
| 36 | 3063009 | Brush and Spring Assy | 2 |
| 37 | 1063122 | Brush Holder | 2 |
| 38 | 1017035 | Information Label, 115v | 1 |
| 1017036 | Information Label, 230v | 1 | |
| 39 | 1055425 | Label Mounting Screw | 4 |
| 40 | 1016201 | Motor Housing and Label | 1 |
| 41 | 1035203 | Gasket | 1 |
| 42 | 1002199 | Brush Cap | 2 |
| 43 | 1007163 | Cap Nut | 4 |
| 44 | 1004150 | Flat Washer | 4 |
| 45 | 1027046 | Stud | 2 |
| 46 | 1036119 | Insert | 2 |
| 47 | 1063123 | Grommet | 1 |
| 48 | 1012047 | “U” Clip | 1 |
| 49 | 1012046 | “S” Clip | 1 |
| 50 | 1001027 | Hanging Ring | 1 |
| 51 | 1002197 | Shroud | 1 |
| 52 | 1019079 | Handle (incls. items 52- 53) | 1 |
| 53 | 1004049 | Lock Washer | 4 |
| 54 | 1055069 | Button Head Screw | 4 |
| 55 | 1055100 | Set Screw | 3 |
| 56 | 1007165 | Lock Nut | 1 |
| 57 | 1004127 | Thrust Bearing Race | 2 |
| 58 | 1028059 | Connecting Rod | 1 |
| 59 | 1021221 | Needle Bearing | 1 |
| 60 | 1021223 | Inner Race | 1 |
| 61 | 1061189 | Crank Arm | 1 |
| 62 | 1021230 | Ball Bearing | 1 |
| 63 | 1020130 | Drive Shaft | 1 |
| 64 | 1026070 | Spiral Bevel Gear | 1 |
| 65 | 1021210 | Ball Bearing | 1 |
| 66 | 1030100 | Woodruff Key | 1 |
| 67 | 1027044 | Drive Stud | 1 |
| 68 | 1021222 | Inner Race | 1 |
| 69 | 1021220 | Needle Bearing | 1 |
| 70 | 1027045 | Rod Stud | 1 |
| 71 | 8030032 | Hex Wrench | 1 |
| 72 | 1055423 | Set Screw | 1 |
| 73 | 1065026 | Push Rod | 1 |
| 74 | 1026071 | Spiral Bevel Pinion Gear | 1 |
| 75 | 1021211 | Ball Bearing | 1 |
| 76 | 1063113 | Armature, 115v | 1 |
| 1063114 | Armature, 230v | ||
| 77 | 1021209 | Ball Bearing | 1 |
| 78 | 1007164 | Lock Nut | 2 |
| 79 | 1012049 | Clamp | 1 |
| 80 | 1027047 | Stator Stud | 2 |
| 81 | 1063115 | Stator, 115v | 1 |
| 1063116 | Stator, 230v |
- Product
- Qty in Cart
- Quantity
- Price
- Subtotal
-
Clamp Bar
Jarvis
$8.57Jarvis Part # 1012048 - CLAMP BAR - Replacement Parts for JARVIS WELLSAW - MODEL 444 (Part 13 from Diagram)$8.57 -
$85.36 -

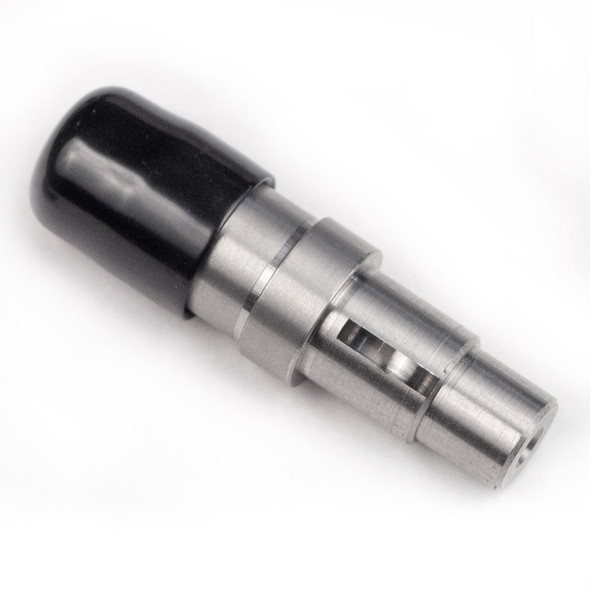

Drive Shaft
Jarvis
$129.69Jarvis Part # 1020130 - DRIVE SHAFT - Replacement Parts for JARVIS WELLSAW - MODEL 444 (Part 63 from Diagram)$129.69 -
"S" Clip
Jarvis
$10.36Jarvis Part # 1012046 - "S" CLIP - Replacement Parts for JARVIS WELLSAW - MODEL 444 (Part 49 from Diagram) MODEL 404 (Part 30 from Diagram) Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â$10.36 -
$3.47 -
Connecting Rod
Jarvis
$159.69Jarvis Part # 1028059 - CONNECTING ROD - Replacement Parts for JARVIS WELLSAW - MODEL 444 (Part 58 from Diagram)$159.69 -
Gear Housing
Jarvis
$415.45Jarvis Part # 1016200 - GEAR HOUSING - Replacement Parts for JARVIS WELLSAW - MODEL 444 (Part 11 from Diagram) Please note this item is not returnable or refundable.$415.45 -
Woodruff Key
Jarvis
$4.21Jarvis Part # 1030100 - WOOODRUFF KEY - Replacement Parts for JARVIS WELLSAW - MODEL 444 (Part 66 from Diagram)$4.21 -
Drive Stud
Jarvis
$29.72Jarvis Part # 1027044 - DRIVE STUD - Replacement Parts for JARVIS WELLSAW - MODEL 444 (Part 67 from Diagram)$29.72 -
$4.87 -
Hanging Ring
Jarvis
$26.03Jarvis Part # 1001027 - HANGING RING - Replacement Parts for JARVIS WELLSAW - MODEL 444 (Part 50 from Diagram)$26.03 -

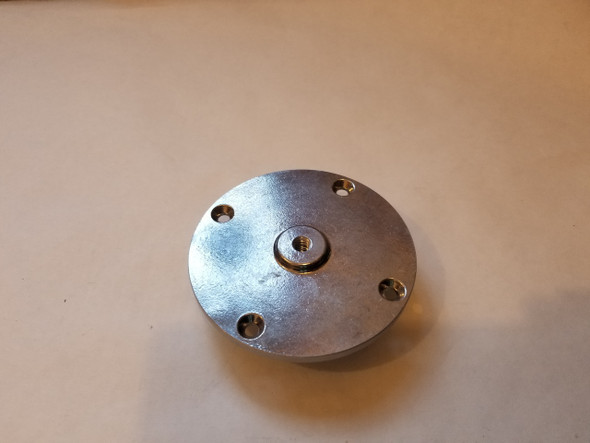

Bearing Cap
