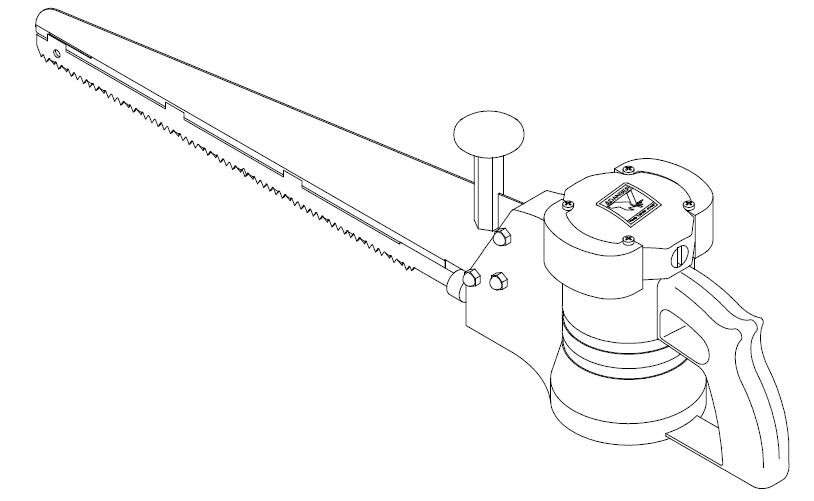

Jarvis Wellsaw - Model 404
| ITEM | JARVIS PART NO. | PART NAME | QTY |
|---|---|---|---|
| 1 | 1063112 | Brush Cap | 2 |
| 2 | 1063111 | Brush and Spring | 2 |
| 3 | 1063110 | Brush Holder | 2 |
| 4 | 1015006 | Deflector | 2 |
| 5 | 1002191 | Top Cap | 1 |
| 6 | 1017083 | Danger Label | 1 |
| 7 | 1055428 | Screw, Flat Head | 4 |
| 8 | 1021215 | Ball Bearing | 1 |
| 9 | 1063119 1063120 |
Stator, 115V Stator, 230V |
1 1 |
| 10 | 1027040 | Stator Stud | 2 |
| 11 | 1007164 | Lock Nut | 4 |
| 12 | 1063117 1063118 |
Armature, 115V Armature, 230V |
1 1 |
| 13 | 1026072 | Pinion Gear, LH Thread | 1 |
| 14 | 1021227 | Ball Bearing | 1 |
| 15 | 1035193 | Seal | 1 |
| 16 | 1035192 | Seal | 2 |
| 17 | 1036116 | Bushing | 1 |
| 18 | 1027041 | Rod Stud | 1 |
| 19 | 3065010 | Push Rod and Stud | 1 |
| 20 | 1012050 | Clamp Ring | 1 |
| 21 | 1055422 | Set Screw, 1/4 inch | 1 |
| 22 | 8030031 | Hex Key | 1 |
| 23 | 1002206 | Blade Support Cover | 1 |

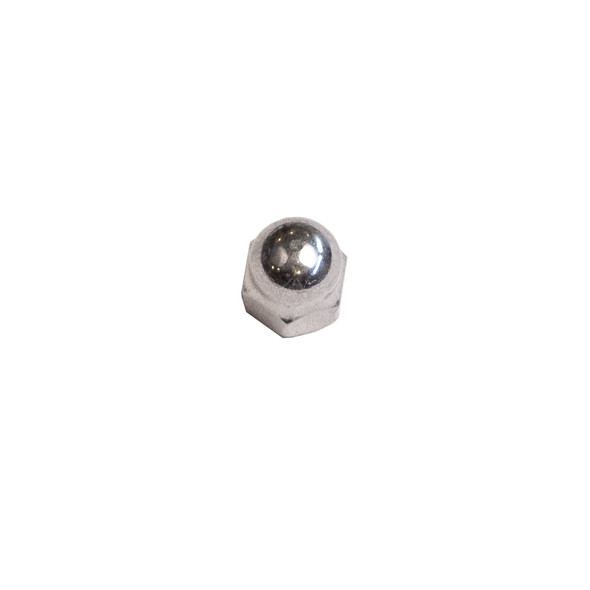

| 24 | 1007162 | Cap Nut | 6 |
| 25 | 1055439 | Screw, Oval Head Phil | 2 |
| 26 | 1054076 | Screw, Coated | 3 |
| 27 | 1002203 | Handle Cover | 1 |
| 28 | 1005038 | Switch | 1 |
| 29 | 1073190 | Screw, Round Head | 2 |
| 30 | 1012046 | “S” Clip | 1 |
| 31 | 1012047 | “U” Clip (rubber) | 1 |
| 32 | 1027048 | Stud | 3 |
| 33 | 1036120 | Insert Bushing | 3 |
| 34 |
Info Label 115V, Eng. Info Label 230V, Eng.
|
1 | |
| 35 | 1045013 | Label Retaining Rivet | 4 |
| 36 | 1004149 | Thrust Bearing Race | 1 |
| 37 | 1021218 | Needle Thrust Bearing | 1 |
| 38 | 1027043 | Drive Stud | 1 |
| 39 | 3026024 | Gear and Stud | 1 |
| 40 | 1020133 | Gear Shaft, LH Thread | 1 |
| 41 | 1021228 | Needle Bearing | 2 |
| 42 | 1035191 | Gasket | 1 |
| 43 | 1002193 | Bottom Plate | 1 |
| 44 | 1055426 | Screw (set of 12) | 1 |
| 45 | 3028030 | Connecting Rod & Brg | 1 |
| 46 | 1029185 | Spacer | 1 |
| 47 | 1013310 | Snap Ring | 1 |
| 48 | 1021216 | Needle Bearing | 2 |
| 49 | 1055454 | Screw, Round Head | 1 |
| 50 |
|
Cord, Plug & Molded Strain Relief, 115V |
1 |
| 51 | 1013137 | Clamp Ring | 1 |
| 52 | 1063125 | Strain Relief | 1 |
| 53 | 3001011 | Cord w/o Strain Relief | 1 |
| 54 | 1063109 | Grommet | 1 |
| 55 | 1016199 | Housing | 1 |
| 56 | 1007166 | Gear Stud Nut | 1 |
| 57 | 1006021 | Knob | 1 |
| 58 | 1055429 | Screw, Oval Head Phil | 2 |
| 59 | 1027042 | Handle Stud | 1 |
| 60 | 1058071 1058070 |
Blade Support 8” End Cut Blade Sup. 16” End Cut |
1 |
| 61 | 1023122 1023121 |
Blade 8” End Cutting Blade 16” End Cutting |
1 |
| 62 | 1058075 1058074 |
Blade Sup. 8” Heavy Duty Blade Sup. 16” Heavy Duty |
1 |
| 63 | 1023123 1023124 |
Blade 8” Heavy Duty Blade 16” Heavy Duty |
1 |
- Product
- Qty in Cart
- Quantity
- Price
- Subtotal
-
On Sale

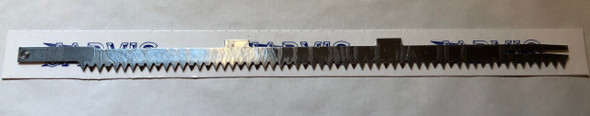

16" Heavy Duty Blade For 444 and Heavy Duty 404
Jarvis
Now: $54.59Was: $62.57Jarvis Part # 1023124 - 16" BLADE FOR 404 & 444 - Replacement Parts for JARVIS WELLSAW - MODEL 404 (Part 63 from Diagram) (Model 444 Part 28 from Diagram) These blades can be sharpened, ask about how!Now: $54.59Was: $62.57 -
$13.71 -
On Sale
16" Heavy Duty Support Bar for 404
Jarvis
Now: $155.53Was: $177.91Jarvis Part # 1058074 - 16" HEAVY DUTY SUPPORT BAR FOR 404 - Replacement Parts for JARVIS WELLSAW - MODEL 404 (Part 62 from Diagram)Now: $155.53Was: $177.91 -
Lock Nut
Jarvis
$3.47Jarvis Part # 1007164 - LOCK NUT - Replacement Parts for JARVIS WELLSAW - MODEL 444 (Part 78 from Diagram) Model 404 (Part 11 from Diagram)$3.47 -
On Sale
16" Blade for 404 - End Cutting *NOT for use with Heavy Duty Bar*
Jarvis
Now: $54.59Was: $62.57Jarvis Part # 1023121 - 16" BLADE FOR 404 - END CUTTING BLADE - Replacement Parts for JARVIS WELLSAW - MODEL 404 (Part 61 from Diagram) NOT for use with Heavy Duty Bar These blades can be sharpened, ask about how!Now: $54.59Was: $62.57 -

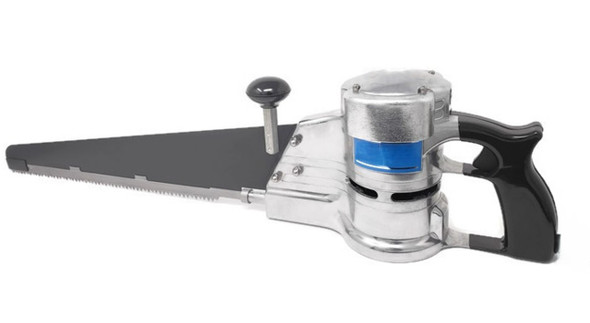

Well Saw with Heavy Duty Bar & Blade 404
Jarvis
$1,150.00Brand New Jarvis 404 Wellsaw has a heavy duty 1-horse power motor which is 115 volt single phase. Which has reciprocating blade design allows cutting on both strokes at the rate of 8000 strokes per minute, with a 1 1/8" stroke length. 404 Wellsaw...$1,150.00 -
Seal (Sold Individually ) *** Need Two for replacement**
Jarvis
$12.02Jarvis Part # 1035192 - SEAL - Replacement Parts for JARVIS WELLSAW - MODEL 404 (Part 16 from Diagram) Need Two$12.02 -
Switch For 404 & 444
Jarvis
$83.43Jarvis Part # 1005038 - SWITCH - (Model 404 Part 28 from Diagram) (Model 444 Part 18 from Diagram)$83.43 -
Food Grade Grease
$14.25Jarvis Part # 1062003 - GEAR GREASE 13 OZ - Food Grade Grease can be used in wellsaw and grinders.$14.25 -
Set Screw 1/4
Jarvis
$5.12Jarvis Part # 1055422 - SET SCREW 1/4 - Replacement Parts for JARVIS WELLSAW - MODEL 404 (Part 21 from Diagram)$5.12 -
Brush & Spring Assy
Jarvis
$15.49Jarvis Part # 1063111 - BRUSH & SPRING ASSY - Replacement Parts for JARVIS WELLSAW - MODEL 404 (Part 2 from Diagram)$15.49 -

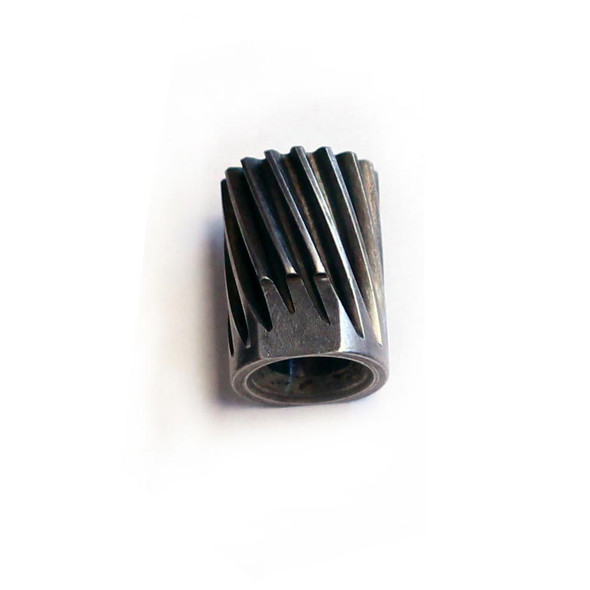

Pinion Gear For 404
